Dubai’s construction schedules rarely leave room for a survey that takes two or three weeks. That time pressure is the main reason developers are shifting toward drone-based photogrammetry for early-stage site data.
A land parcel in Dubai South that once needed a five-person survey crew for two weeks can now be mapped by a single drone operator in a day. The gap shows up fastest on large, open plots where ground crews spend most of their time just walking the site.
How Drone Photogrammetry Actually Works
Photogrammetry means building an accurate map from overlapping photographs rather than direct ground measurement. A drone flies a pre-planned grid over the site, capturing images with 70 to 80 percent overlap so software can stitch them together.
The output includes an orthomosaic, a single geometrically corrected image of the whole site, plus a point cloud that converts into contour lines or a digital terrain model.
For projects needing this kind of aerial mapping, Baseera 360’s drone land surveying and mapping services in Dubai run the flight and process the data using a sensor setup built for this exact overlap-heavy capture.
From Flight Plan to Finished Map
- Flight planning software calculates the grid pattern and overlap needed for the site size and required accuracy.

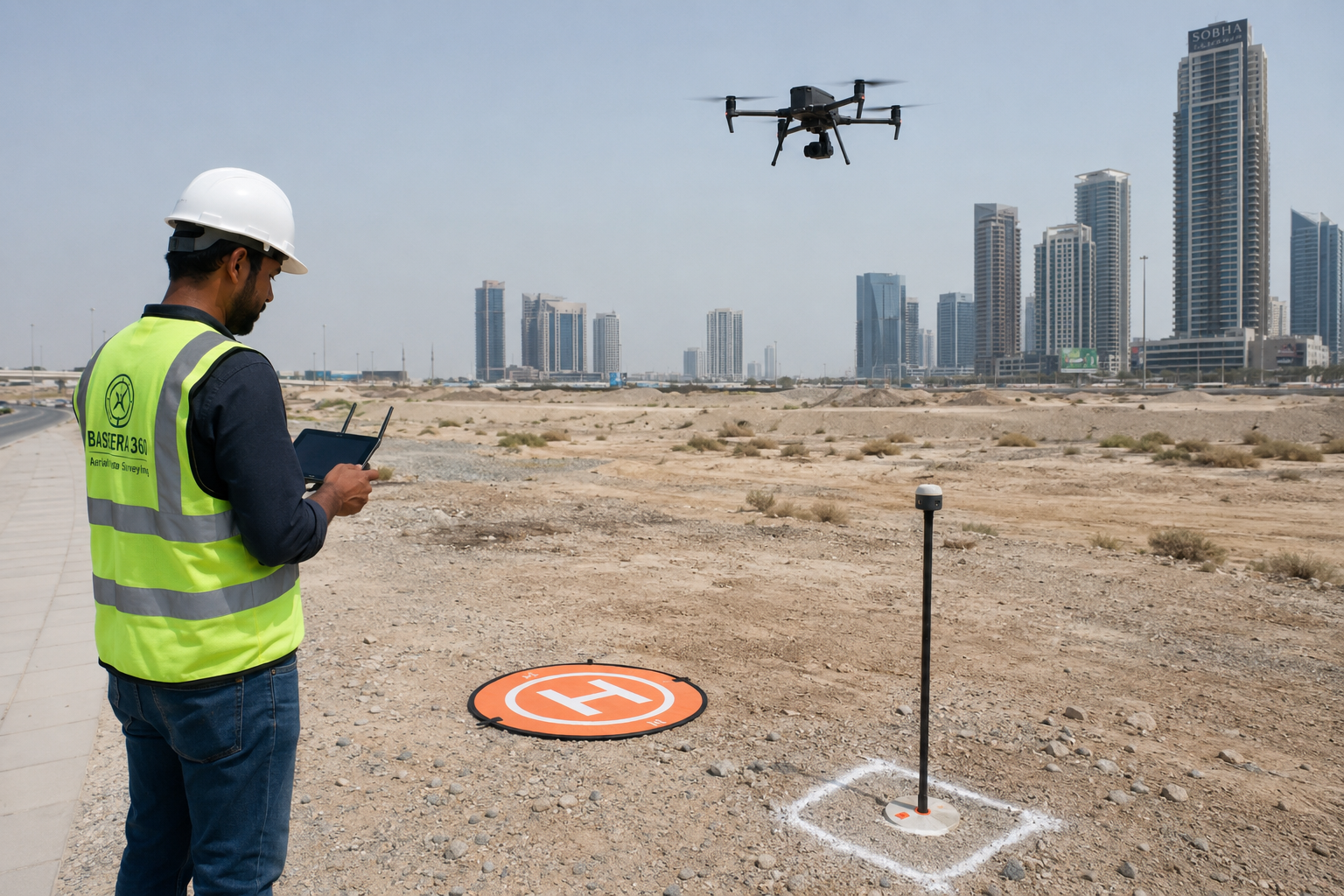

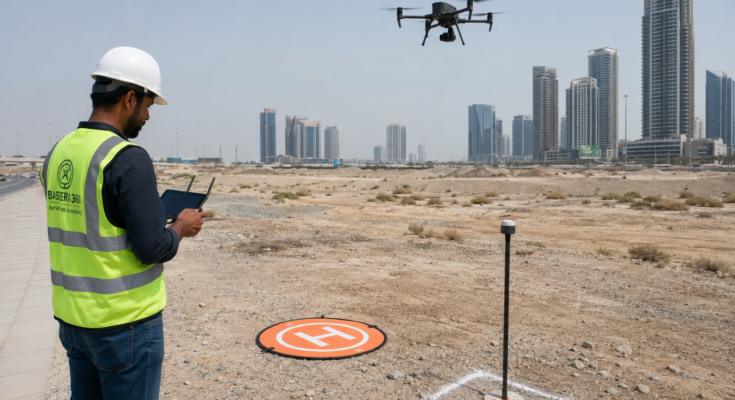

- Ground control points, physical markers with known coordinates, get placed and surveyed before the flight.
- The drone captures imagery, then processing software builds the orthomosaic and point cloud, often overnight for a mid-size site.
Where Photogrammetry Replaces and Where It Still Needs Ground Crews
Photogrammetry handles open plots, roads, and construction sites extremely well, often reaching centimeter-level accuracy once ground control points are set correctly.
It struggles on landscaped or heavily vegetated sites, since the camera only captures what it can see, not the ground beneath tree canopy. A villa compound with mature trees is a case where a photogrammetry-only survey misreads ground level under the canopy, and a LiDAR pass or manual spot checks fill that gap.
This kind of mismatch between survey method and site conditions is exactly the sort of thing that turns into a pre-construction planning delay if it isn’t caught early.
Choosing a Drone Survey Provider in Dubai
Not every provider offering “drone surveys” in Dubai holds the same licensing or equipment. Commercial drone operations across the UAE require authorization from the General Civil Aviation Authority, according to the UAE government’s aviation safety guidance, and Dubai requires approval for each flight.
Baseera 360’s aerial mapping and surveying team handles that permitting as part of the project scope, which matters most on sites near flight-restricted zones such as airports.
Ask any provider for a sample deliverable and their operator credentials before booking, since accuracy claims are only as good as the licensing and equipment behind them.
FAQ
Is drone photogrammetry accurate enough for legal boundary surveys?
It can be, provided ground control points are surveyed by a licensed surveyor and tied into the official coordinate system. Without that step, the map is visually accurate but not legally certifiable.
Do drone surveys still need ground control points?
Yes, for any survey requiring absolute accuracy rather than just a visual reference. GPS-only drones can drift by tens of centimeters, and ground control points correct for that.
How long does a typical drone land survey take compared to a manual crew?
A site that takes a five-person crew one to two weeks with total stations can often be flown and processed within one to three days. Very large or complex sites still take longer to process than to fly.
What weather conditions affect drone survey accuracy?
Wind above roughly 25 to 30 km/h destabilizes the flight path and image quality, and low sun angles or haze wash out the contrast needed for photo matching. Most operators reschedule rather than fly through either condition.
Can drone photogrammetry data be used directly in CAD or GIS software?
Yes. Point clouds and orthomosaics export into standard formats such as DWG, DXF, and GeoTIFF that most CAD and GIS platforms read without conversion.
